Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Emitever 50W Triac Dimmable Driver, AC 120V to DC 24V Transformer Emitever
Click to open expanded view
Input Voltage AC 120V 50/60Hz
Output Voltage DC 24V
Maximum Output 50W
Efficiency Up to 86%
IP Rating IP30 Dry or damp location
Power Factor >0.9
Converts AC 120V power to DC 24V power
Color White
Included Components 50W Dimmable Driver
Mounting Type Surface Mount
Number of Items 1
Specification Met ETL
Style 50W Dimmable Driver
SKU: PWR-P24V-050-30-U

50W Triac Dimmable Driver, Power Supply, AC 120V to DC 24V Dimming Transformer, IP30

样式: 50W Dimmable Driver
Price
$49.99
Taxes and shipping calculated at checkout

50W Triac Dimmable Driver, Power Supply, AC 120V to DC 24V Dimming Transformer, IP30

SKU
样式
Price
PWR-P24V-050-30-U 50W Dimmable Driver
$49.99
Compare product options
9975 in stock and ready for shipping

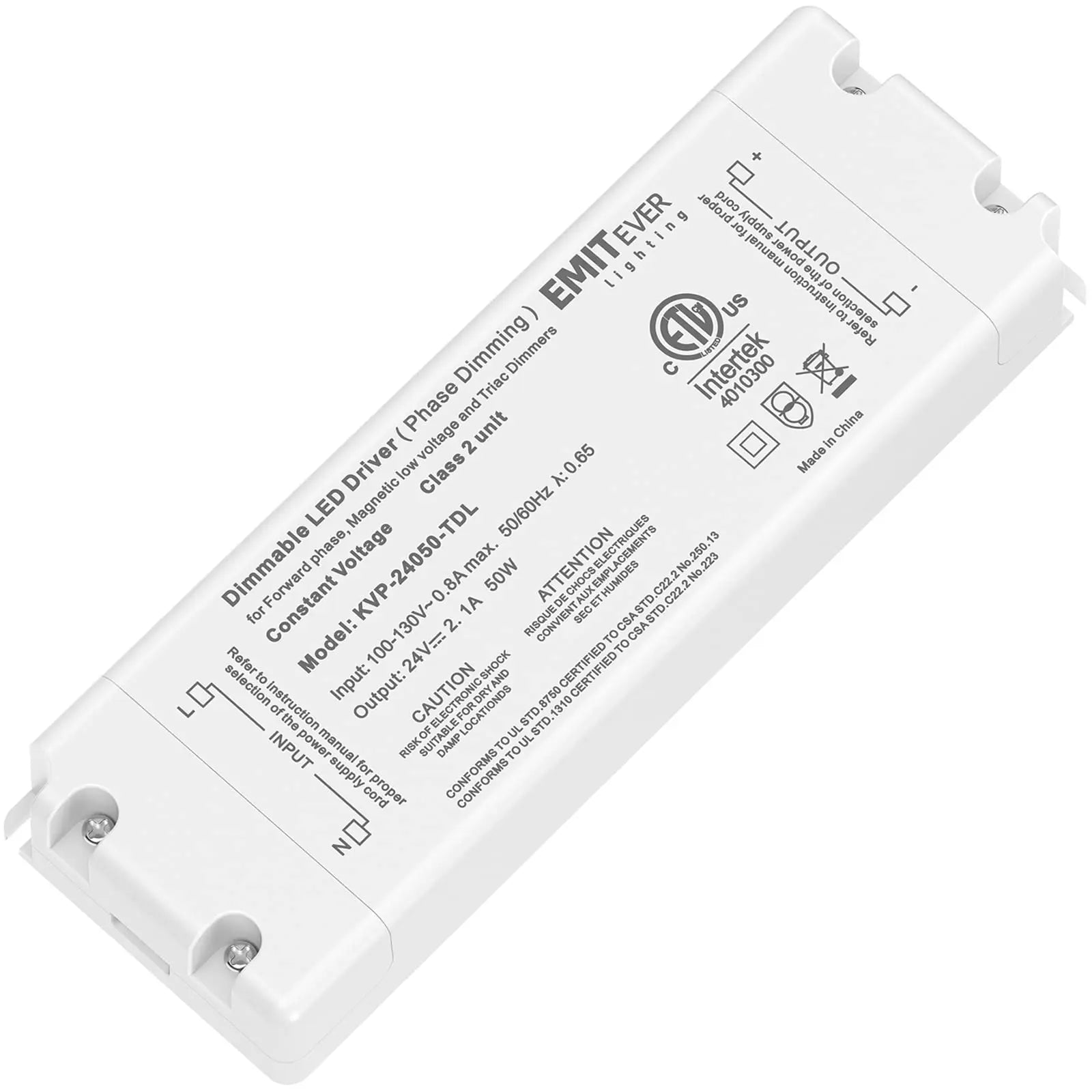

The Emitever 50W Triac Dimmable Driver is designed to provide reliable and efficient power to LED lighting systems.

  • Converts 120V power to DC 24V power, with a maximum output of 50 watts.
  • Triac dimming allows for seamless brightness control using a standard wall dimmer switch.
  • Smooth Dimming
  • Flicker Free

Features over-current protection and short-circuit protection for a safe and protected installation from electrical surges or other problems.

Share this product

Converts your project's 120V AC line voltage to 24V DC .

Compatible with Forward phase, Magnetic low voltage, and Triac dimmers.

Description

The Emitever 50W Triac Dimmable Driver is designed to deliver reliable and efficient power to LED lighting systems. 0-100% smooth, full-range flicker-free dimming.

  • It converts AC 120V power to DC 24V power, with a maximum output of 50 watts.
  • The triac dimming feature allows for seamless brightness control using a standard wall dimmer switch, helping you create the desired ambiance in your space.
  • Suitable for a wide range of LED lighting applications, create your desired ambiance and mood in your living space or work area.
  • This dimmable driver can convert a significant portion of input power into usable output power, minimizing waste and reducing energy costs.
Product Features

Phase Dimming: Compatible with Forward phase, Magnetic low voltage (MLV), and Triac Dimmers

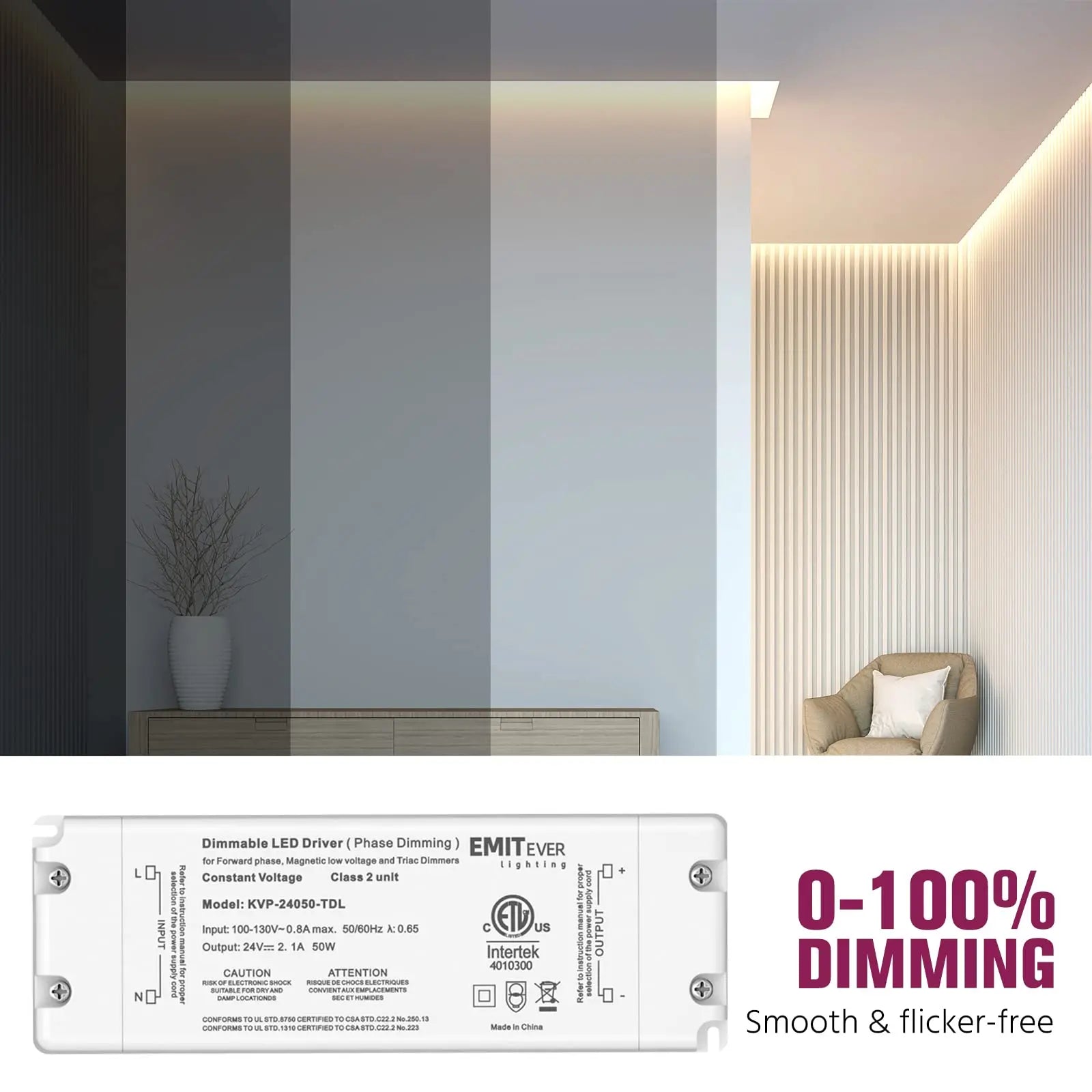

Stable output: 0-100% smooth and full range flicker-free dimming.

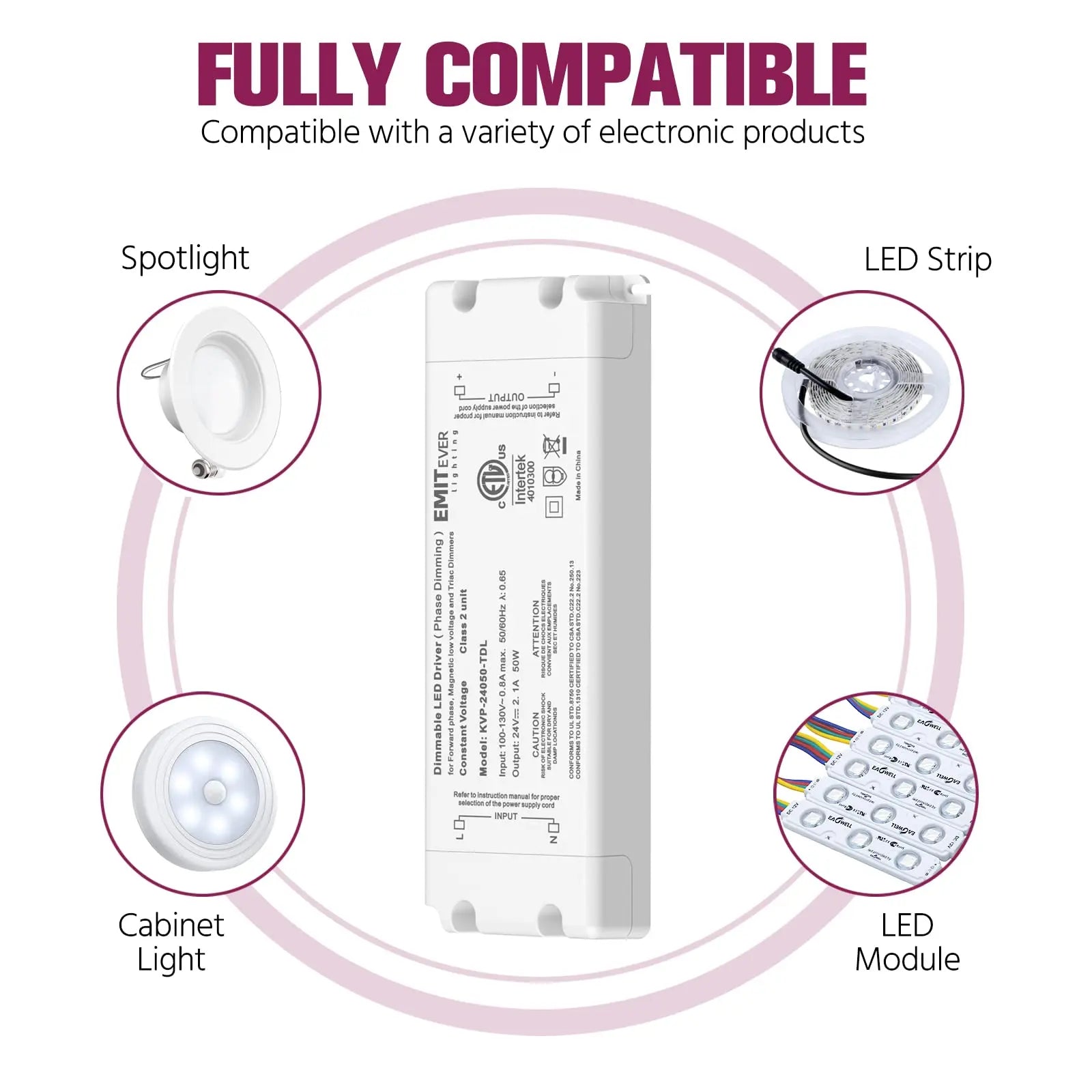

24V: Works for DC24 LED Lighting such as LED strips, modules, light bars, puck, under cabinet and other LED accent lights.

Power Efficient: With a power factor greater than 0.9 and an efficiency rating of up to 86%, this Dimmable Driver's power is highly efficient.

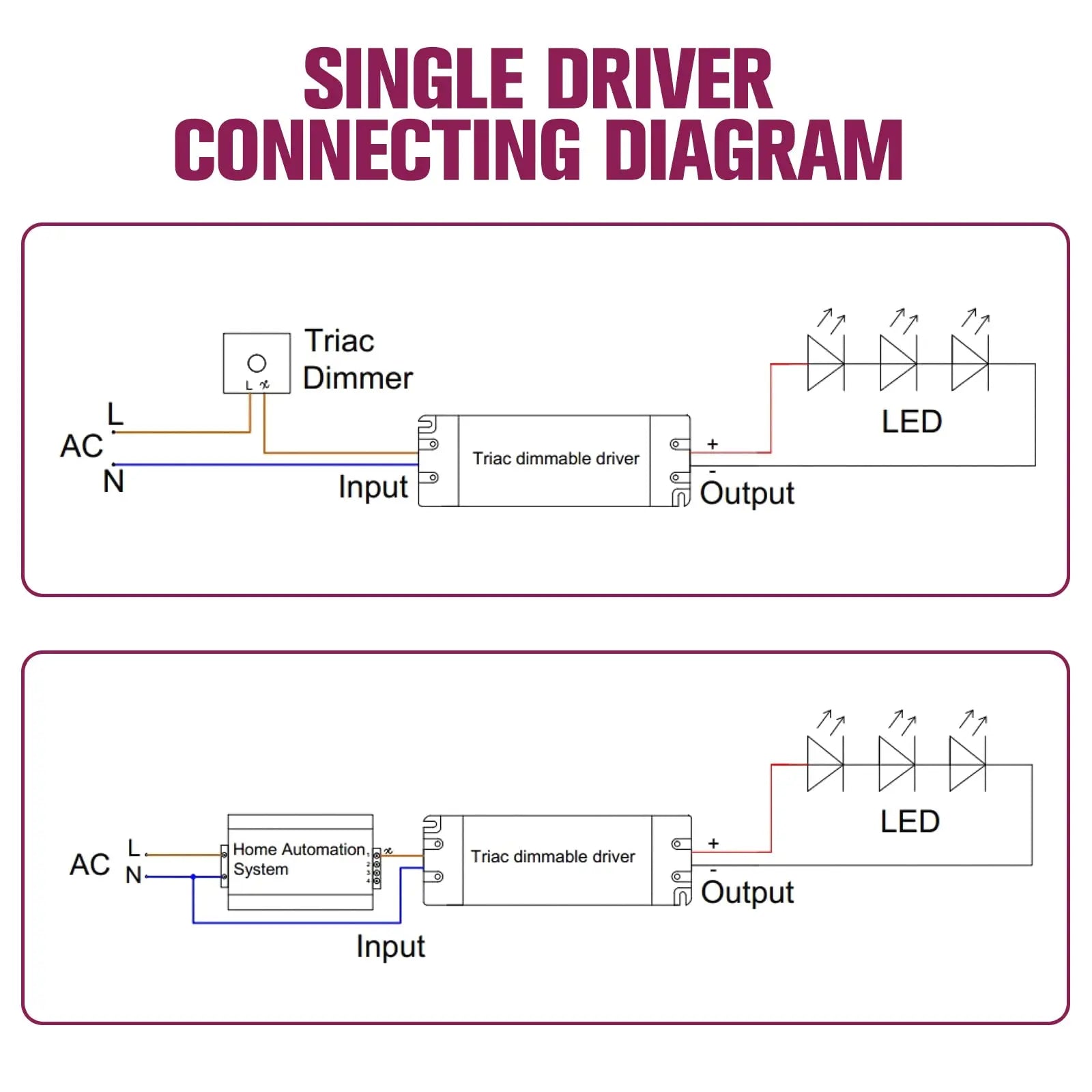

Easy to install: Simply connect the Red and Black wires to the LED device. Ensure the connection is done correctly.

IP30: Dry or damp location use IP30

Forward Phase Dimmer: For optimal AC dimming performance use a forward phase CL-style or equivalent dimmer.

*The use of reverse phase or ELV may degrade dimming performance.

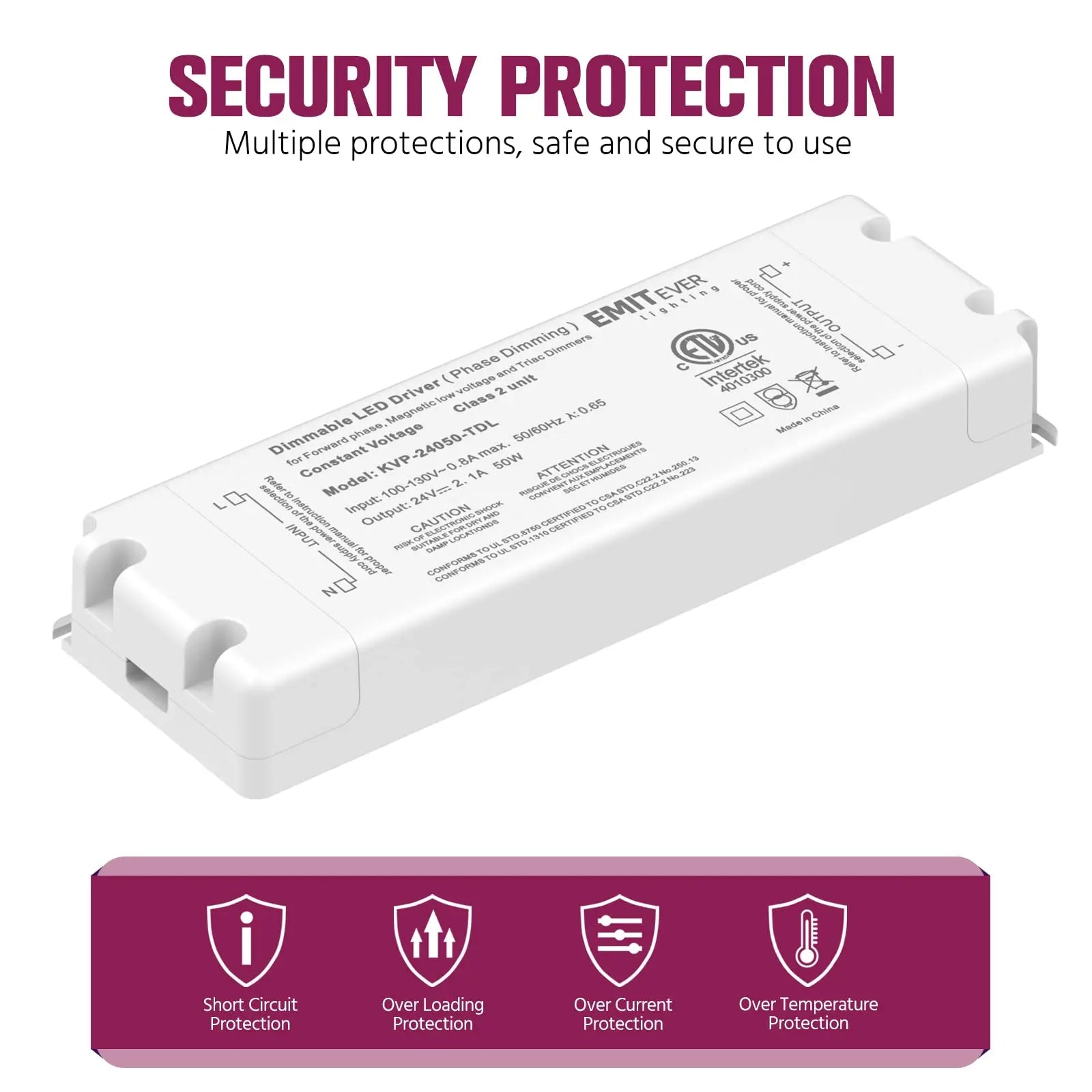

Safety Features

Always verify connections before powering up.

Built-in protection includes:

  • Short Circuit
  • Over Loading
  • Over Current
  • Over Temperature

Overload Protection: Prevents the driver from overloading, ensuring safe and stable operation.

Over Temperature Protection: Shuts down the output voltage at 100℃±10℃ to prevent overheating and automatically recovers after cooling down.

Full Protection Plastic Case: Ensures durability and safety for dry and damp locations.

Certifications
  • ETL US Listed
  • IP Rating: IP30
  • Warranty: 5 Years
