300W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
300W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
30W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
30W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
384W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
384W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
288W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
288W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
192W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
192W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
100W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
100W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
60W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
60W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
96W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
96W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
120W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
120W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
150W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
150W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
Click to open expanded view
Input Voltage AC 110V-277V 50/60Hz
Output Voltage DC 24V
Maximum Output From 30W to 384W
Power Factor Greater than 0.9
Efficiency Rating Up to 90%
IP Rating IP66 (suitable for harsh conditions, wet and damp locations)
Material High Quality Aluminum
Mounting Type Surface Mount
Color Black
Specification Met UL
SKU: PWR-G24V-030-66-U-D-J

Universal Dimmable LED Driver, AC 110V-277V to DC 24V Transformer 5-in-1 Dimming IP66

35 reviews

Power:

Price
$42.49
Taxes and shipping calculated at checkout

Universal Dimmable LED Driver, AC 110V-277V to DC 24V Transformer 5-in-1 Dimming IP66

SKU
Power
Price
30W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-030-66-U-D-J 30W
$42.49
60W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-060-66-U-D-J-N 60W
$59.49
96W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-096-66-U-D-J 96W
$81.59
100W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-100-66-U-D-J 100W
$81.59
120W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-120-66-U-D-J 120W
$90.09
150W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-150-66-U-D-J 150W
$101.99
192W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-192-66-U-D-J 192W
$127.49
288W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-288-66-U-D-J-N 288W
$161.49
300W Dimmable Led Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-300-66-U-D-J 300W
$145.34
384W Dimmable LED Driver, AC 110V-277V to DC 24V Transformer, 5-in-1 Dimming, IP66 Emitever
PWR-G24V-384-66-U-D-J-N 384W
$178.49
Compare product options
376 in stock and ready for shipping

The Emitever Universal Dimmable Driver is designed to provide reliable and efficient power performance to LED lighting systems.

  • Converts: 110V-277V to DC 24V power, with a maximum output of 120 watts.

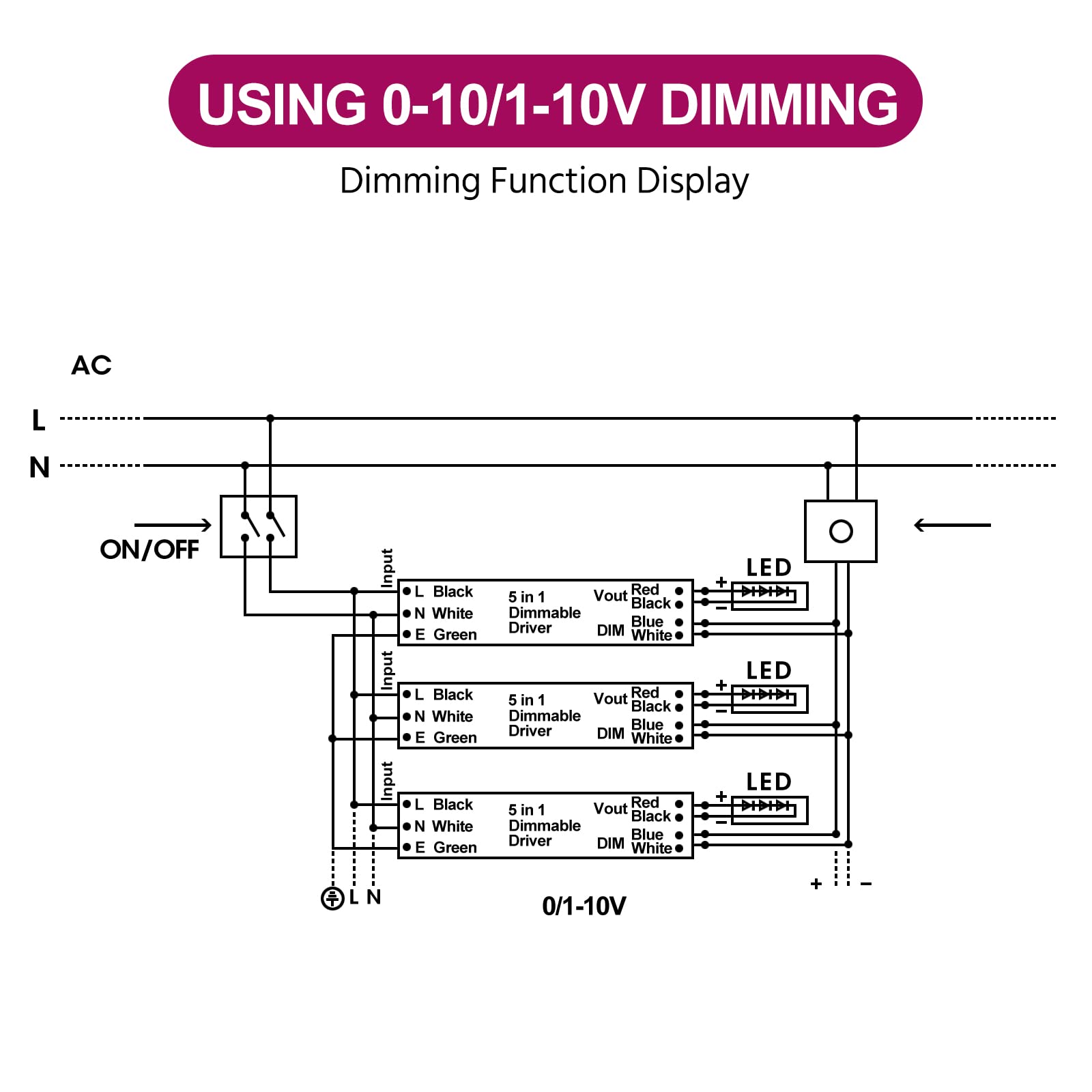

  • 5-in-1 Dimming: Compatible with ELV, MLV, TRIAC, 0-10V, 1-10V, 10V PWM, and Potentiometer dimming methods.
  • Smooth Dimming: Seamless brightness control using a standard wall dimmer switch ensures smooth, flicker-free dimming from 0-100%
  • Strong Quality: with a tough aluminum housing and an IP rating of IP66 this driver is suitable for harsh conditions, wet, dry and damp locations.
  • Works seamlessly: with brands like Lutron, Leviton, Legrand, and Cooper AH.

Features over-current protection and short-circuit protection for a safe and protected installation from electrical surges or other problems.

Converts your project's 110V-277V AC line voltage to 24V DC .

5-in-1 Dimming Compatible with ELV, MLV, TRIAC, 0-10V, 1-10V, 10V PWM, and Potentiometer dimming methods.

Description

The Emitever 100W Dimmable LED Driver is capable of converting your project's 110V-277V AC line voltage to 24V DC while providing reliable and efficient power to your LED lighting systems.

Ideal for a wide range of LED lighting application, suitable for both residential and commercial settings, including indoor and outdoor use applications.

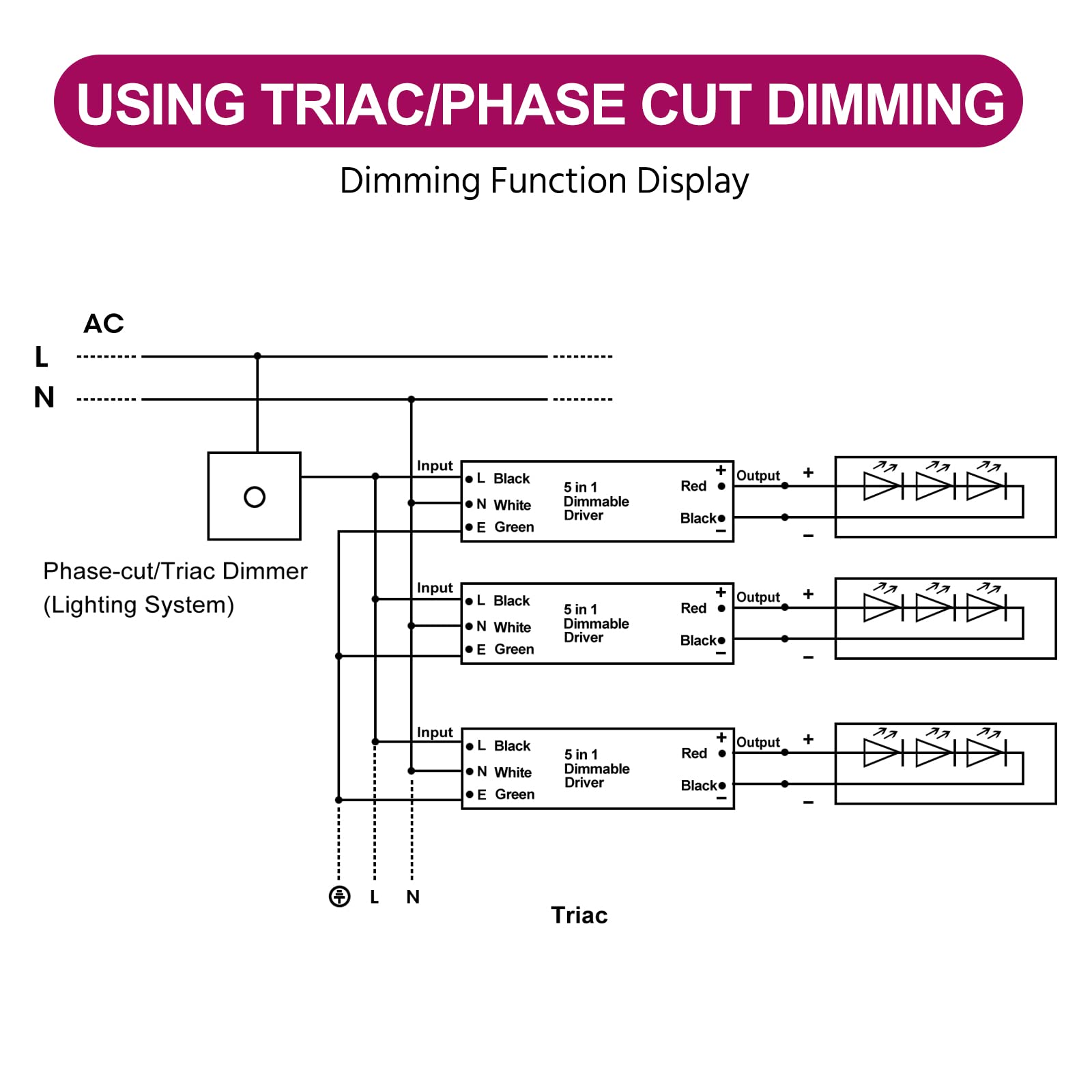

Compatible with standard MLV, ELV, Incandescent TRIAC (forward phase) dimmer switches

Can be used with secondary side control systems, commonly paired with Lutron and Leviton receivers and controls for precise dimming.

Featuring a power factor greater than 0.9 and an efficiency rating of up to 90%.

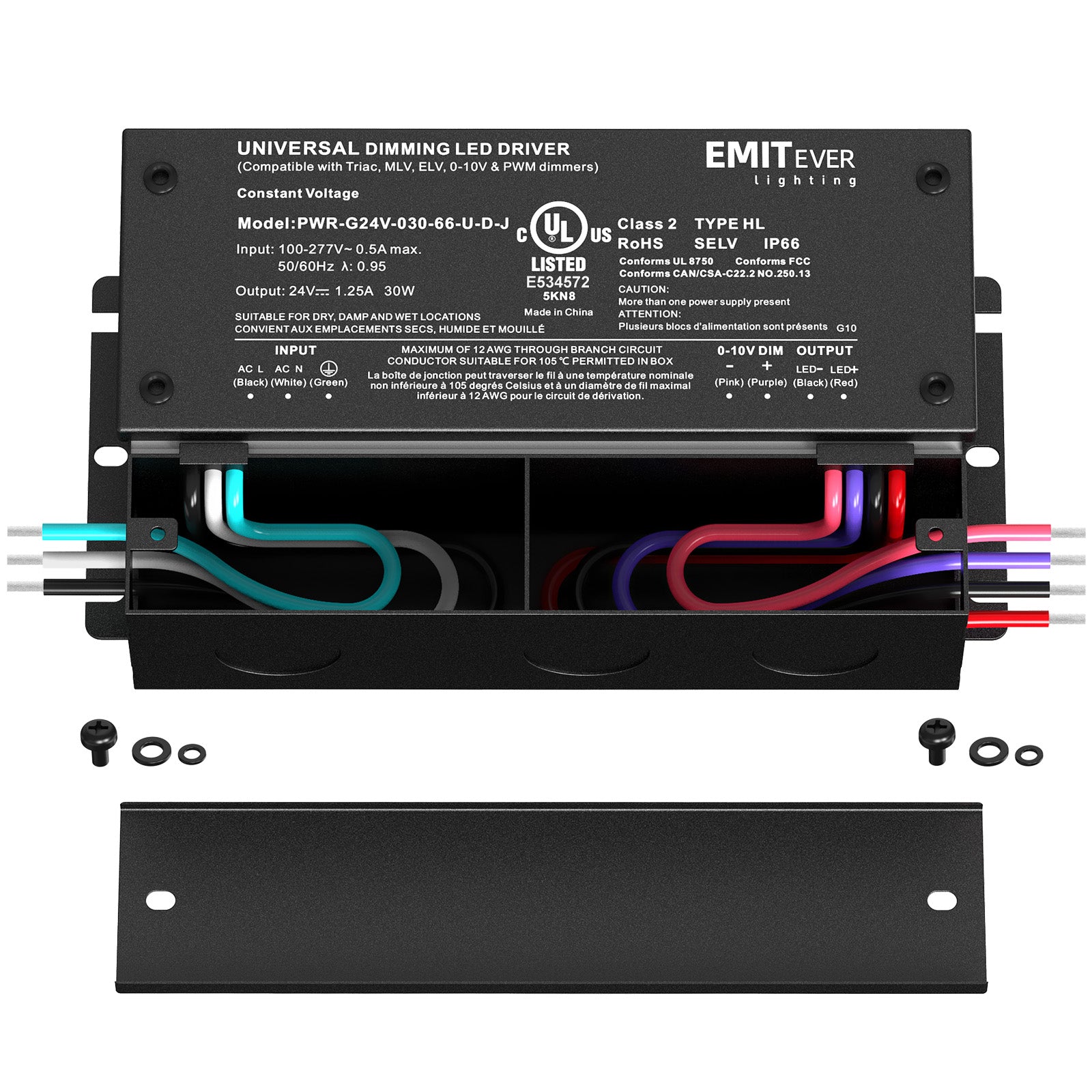

Encased in a low profile aluminum enclosure that includes knockouts for easy installation in any low voltage application.

Incredibly robust and includes a 5-Year warranty. Within 30 days since the order date, you can get a full refund without any prerequisite after returning an Emitever product undamaged.

Product Features

5-in-1 Forward and Reverse Phase Dimming: Compatible with ELV, MLV, TRIAC, 0-10V, 1-10V, 10V PWM, and Potentiometer dimming methods.

This versatility makes it ideal for high-performance dimming applications.

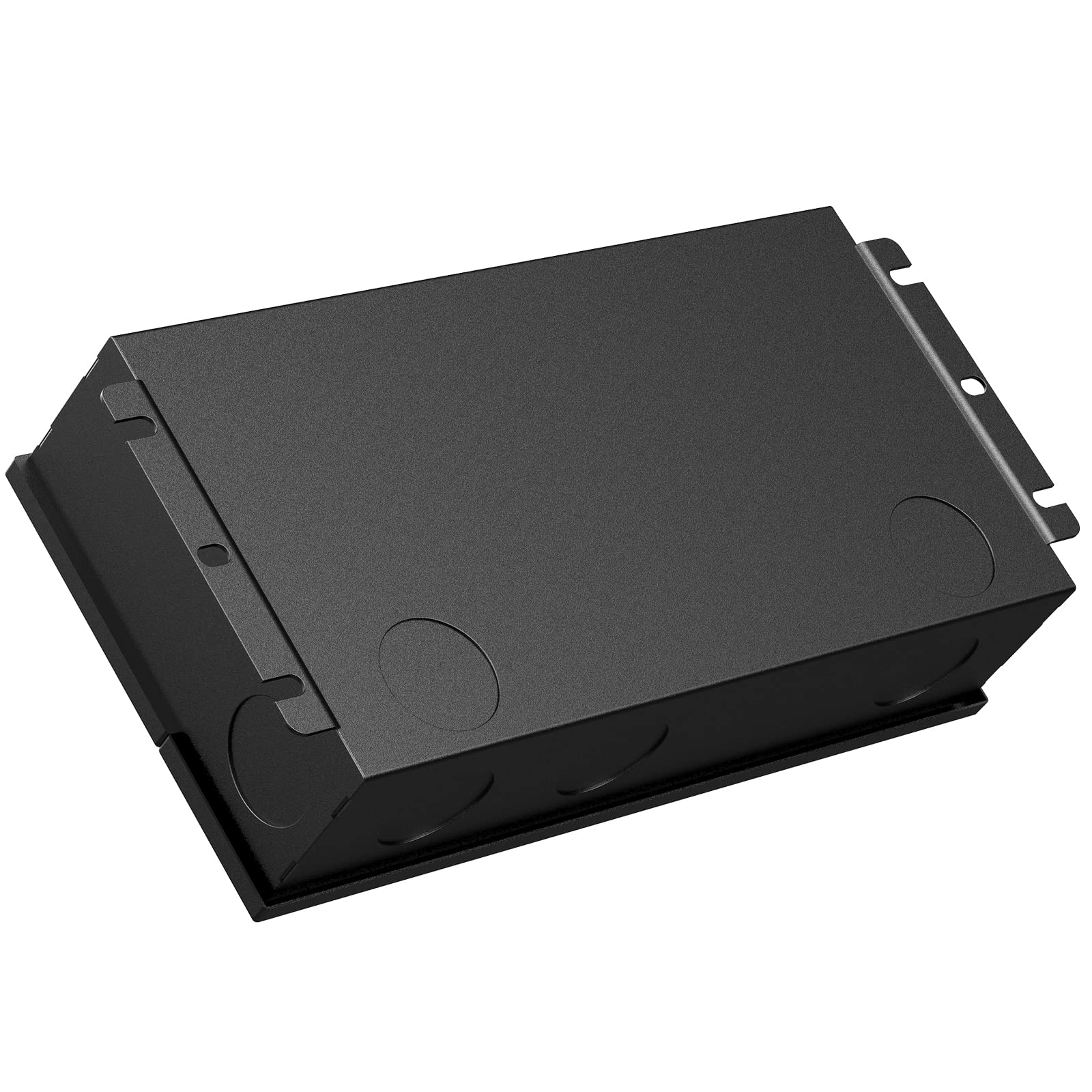

Premium Commercial Construction: Encased in a low-profile aluminum enclosure with knockouts for easy installation in any low voltage application.

Built-in Protection: Includes standard protections such as short-circuit, overload, and over-temperature protection, ensuring safe and reliable operation.

Mounting Foot: Includes mounting feet at both ends for secure installation on flat surfaces.

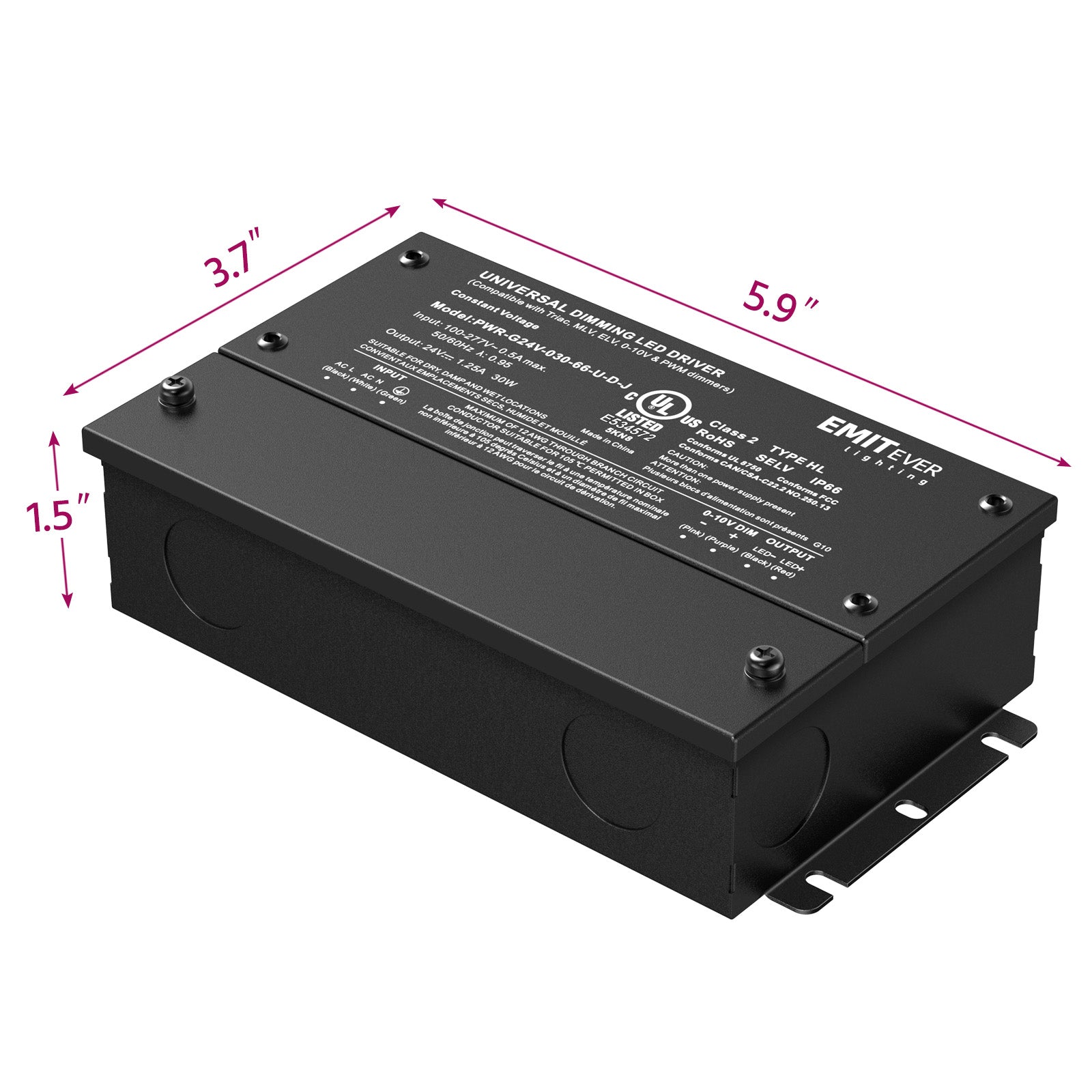

Compact: The driver is only 1.5 inches tall, allowing for compact and convenient placement.

Free Air Convection Cooling: The driver's aluminum housing is designed for efficient cooling, ensuring the driver remains cool and functional during operation.

Safety Features

Always verify connections before powering up.

Short Circuit Protection: Prevents damage by automatically shutting down and recovering after resolving the issue.

Overload Protection: Ensures safe and stable operation by preventing overloading.

Over Temperature Protection: Shuts down the output voltage at high temperatures to prevent overheating and automatically recovers after cooling down.

Free Air Convection Cooling: Within low profile compact aluminum housing (only 1.5-inch tall).

Energy Efficient: Converts a large portion of the input power into usable output power, minimizing waste and reducing energy costs.

Certifications
  • cUL us Listed
  • Class 2
  • Class P
  • Type HL
  • FCC compliant
  • IP66 Rating
Shipping

US SHIPMENTS

  • Worldwide shipping via DHL, UPS, PDP and FEDEX.
  • Standard Shipping 3 - 5 days - Cutoff at 3 PM (PST)
  • FREE Ground Shipping (USPS or FedEx) on orders of $100 or more.
  • Product weight and quantity are considered for shipping costs.
  • Shipping costs are calculated at the time of purchase.
  • We ship most orders via UPS Ground.

CANADA SHIPMENTS

  • We use USPS (United States Post Office) or UPS for all our shipments to Canada.
  • USPS transfers shipments to Canada Post then delivers the packages to you.
  • UPS delivers directly to you.
  • You are responsible for the any import duties due at the time of delivery.

NOTES

  • Please note that we require 1 to 2 working days on average to fulfill your order before dispatching it.
  • Once your order is dispatched, depending on your country or region, the estimated delivery time is between 3 to 5 business days.
  • Please consider any holidays that might impact delivery times.
  • When your order is placed, if your order weighs less than 2 lbs. it will ship via USPS unless you request otherwise during checkout.

HELP

  • Wrong Shipping Address: It is the sole responsibility of the buyer to make sure that the shipping address entered at checkout is correct.
  • Contact Us Quickly: We do our best to speed up processing and shipping time, please contact us immediately at service@emitever.com if you believe you have provided an incorrect shipping address.
  • Customs: If the packages are detained by customs, it will be the buyer’s responsibility to communicate with customs and pay any tax fees from customs.
Returns

Returns Policy

  • Our 30-day return policy gives you time to make sure you love your order.
  • Notify us within 30 days and Emitever.com will issue you a refund, replacement, or credit if you are not satisfied with your purchase.
  • If 30 days have passed since the time of your purchase, we cannot offer you a refund or exchange.
  • Read more about our returns and refund policy.

Damaged or Wrong Orders

  • Emitever will replace or issue a refund for any damaged or incorrect items as well as any applicable shipping costs if we made an error shipping your order or if it your order arrived damaged.
  • For a damage claim to be successful, Emitever.com has to be notified of the damage within 5 working days of the damage.
  • We will file the claim on the customer's behalf and arrange for a replacement at no cost to you or begin arrangement for processing your refund.

Resource Downloads

Download Spec Sheets:

30W Universal Dimmable Driver

60W Universal Dimmable Driver

96W Universal Dimmable Driver

100W Universal Dimmable Driver

120W Universal Dimmable Driver

150W Universal Dimmable Driver

192W Universal Dimmable Driver

288W Universal Dimmable Driver

300W Universal Dimmable Driver

384W Universal Dimmable Driver
