GUIDED LED SYSTEM BUILDER
LED System Builder
Answer a few questions about your project and get recommended LED strips, drivers, power requirements, and compatible accessories.
Step 1 of 8
Project type?
Select the application that best matches your project. We’ll recommend the appropriate products, IP rating, and voltage.
What best describes your project?
Choose the layout that matches your installation. This determines how we calculate quantities and drivers.
Single Continuous LED Run
Enter the length of a single continuous strip of LED lights, powered by one dedicated driver.
Run configuration
ft
Strip type?
COB = dot-free continuous output, preferred for architectural work. SMD = cost-effective for large runs.
Color temperature?
Match to project spec sheet or client requirement.
Power supply?
All drivers are UL/ETL listed. Class 2 rated where applicable.
Control method?
Select how brightness will be controlled. Dimming protocol is matched automatically.
⚠ Owner-Supplied Dimmer — Compatibility Checklist
Before connecting your dimmer to any LED driver, confirm:
- Protocol match: Your dimmer must use ELV (Reverse-Phase) or TRIAC (Forward-Phase) — not incandescent-only.
- Minimum load: Many dimmers require a minimum wattage load. LED drivers often draw low current — check your dimmer’s minimum spec.
- Low-voltage compatibility: Confirm the dimmer is rated for low-voltage / electronic transformer applications.
Connectors required?
Solderless snap-in. Suitable for in-wall and in-ceiling channel installations.
Need contractor pricing for this project?
This build qualifies for volume pricing. Request a quote →
⛭ Your Recommended LED System
Emitever LED Lighting Systems Builder — emitever.com
System Summary
Recommended Components
Dimming Method
Project Notes
Recommended Accessories
Share / Export
Estimated Total (1 zone)$0.00
🚚 Free shipping on $100+
🔒 Secure checkout
↩ 30-day returns
🏭 Wholesale pricing available
All items above added in one click. Review quantities before checkout.
Frequently Asked Questions
"How do I calculate LED strip power requirements?"
To calculate LED strip power requirements, multiply the strip's wattage per foot (or meter) by the total length of the installation.
Example:
- LED Strip Power: 4W per foot
- Total Length: 20 feet
4W × 20ft = 80W
For reliable operation, we recommend adding approximately 20% headroom when selecting a power supply or LED driver.
80W × 1.2 = 96W
In this example, a 100W driver would be an appropriate choice.
Our LED System Builder automatically performs these calculations and recommends compatible drivers based on your project requirements.
"What size LED driver do I need?"
The correct LED driver size depends on the total wattage of all connected LED strips.
A good rule is to choose a driver that provides at least 20% more power than your calculated load.
Example:
- Total LED Load: 80W
- Recommended Driver Capacity: 96W or greater
In this case, a 100W driver would be suitable.
Using a properly sized driver helps improve reliability, reduce heat, and extend the lifespan of your lighting system.
"Can I connect multiple LED strips to one driver?"
Yes. Multiple LED strip sections can often be powered from a single driver as long as:
- The combined wattage does not exceed the driver's capacity.
- All strips use the same voltage.
- Wiring is sized appropriately for the total load.

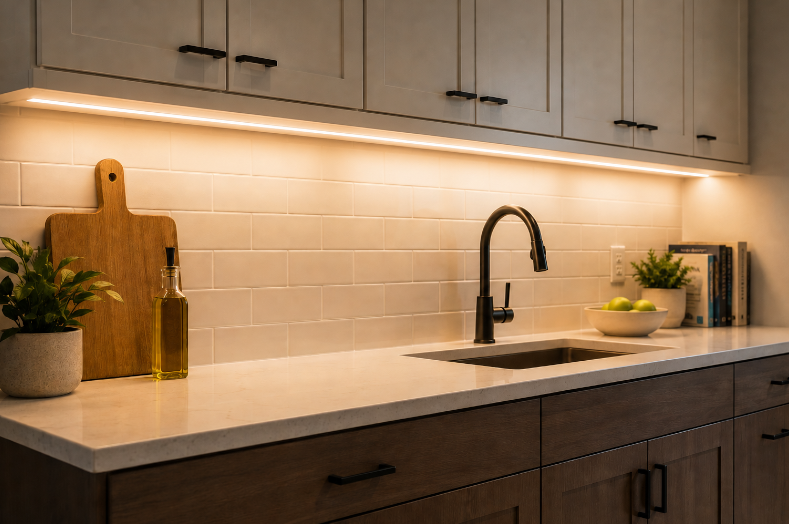

Many under-cabinet and architectural lighting projects use multiple strip sections connected to a single driver through extension wires, jumpers, or connectors.
If all sections are powered from the same driver and operate together, they are typically considered a single lighting zone.
"How do I choose a dimmable LED power supply?"
The best dimmable LED power supply depends on how you plan to control the lights.
Common dimming methods include:
- TRIAC / ELV wall dimmers

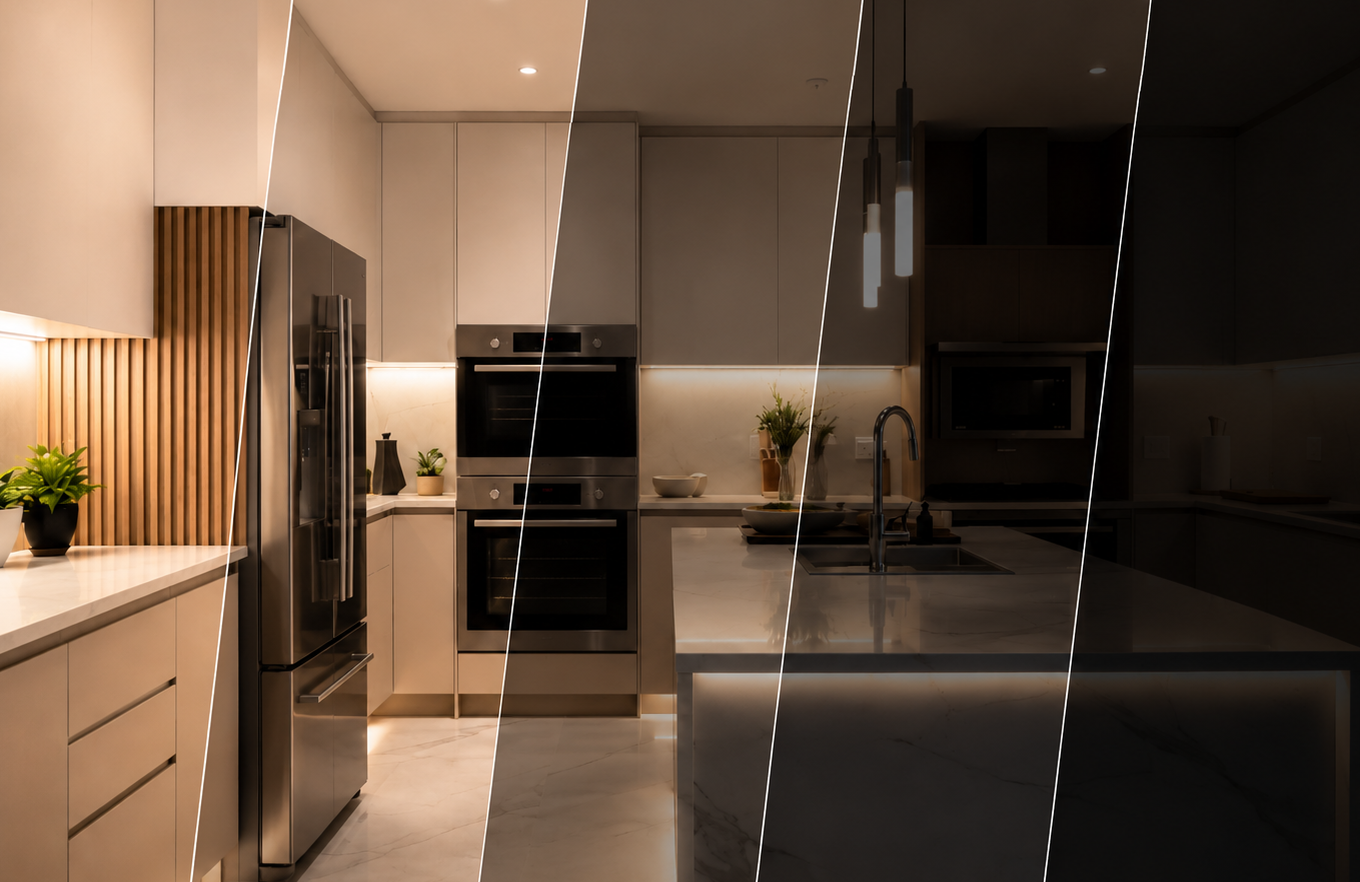

- 0-10V dimming systems
- PWM dimmers
- Smart lighting controllers
The power supply and dimmer must be compatible with each other and with the LED strips being used.
If you already have a dimmer installed, our LED System Builder can help identify compatible driver options for your project.
"What voltage should I use for LED strip lighting?"
We offer both 24V and 48V LED strip lighting systems.
24V LED Systems
- Ideal for most residential and commercial installations
- Excellent balance of performance, efficiency, and compatibility
- Recommended for the majority of LED strip lighting projects

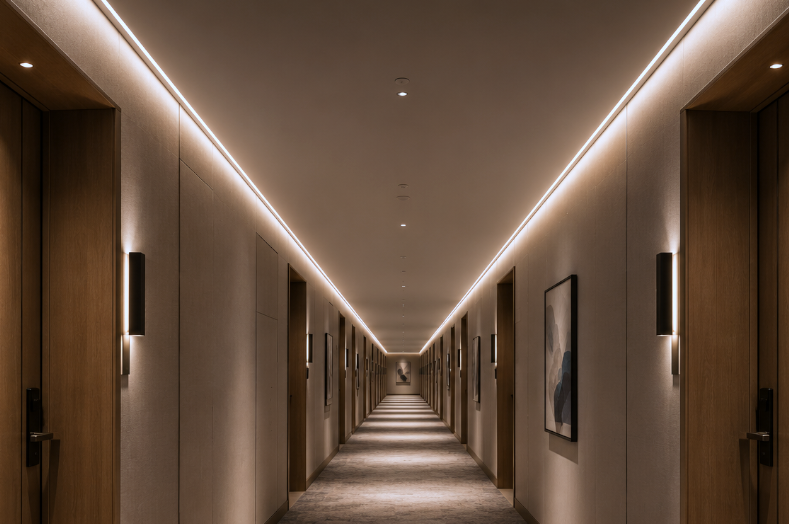

48V LED Systems
- Best for longer strip runs where minimizing voltage drop is important
- Allows greater run lengths from a single power source
- Can provide higher output for applications requiring additional brightness
For most projects, 24V is the recommended choice. If your installation requires exceptionally long runs or higher output, a 48V system may be the better option.
Our LED System Builder will recommend the appropriate voltage based on your project requirements.
"Can I cut and reconnect LED strip lights?"
Yes. Most LED strips can be cut at designated cut points and reconnected using wire, solder joints, or compatible connectors. As long as all sections are powered from the same driver and operate together, they are generally considered a single lighting zone.

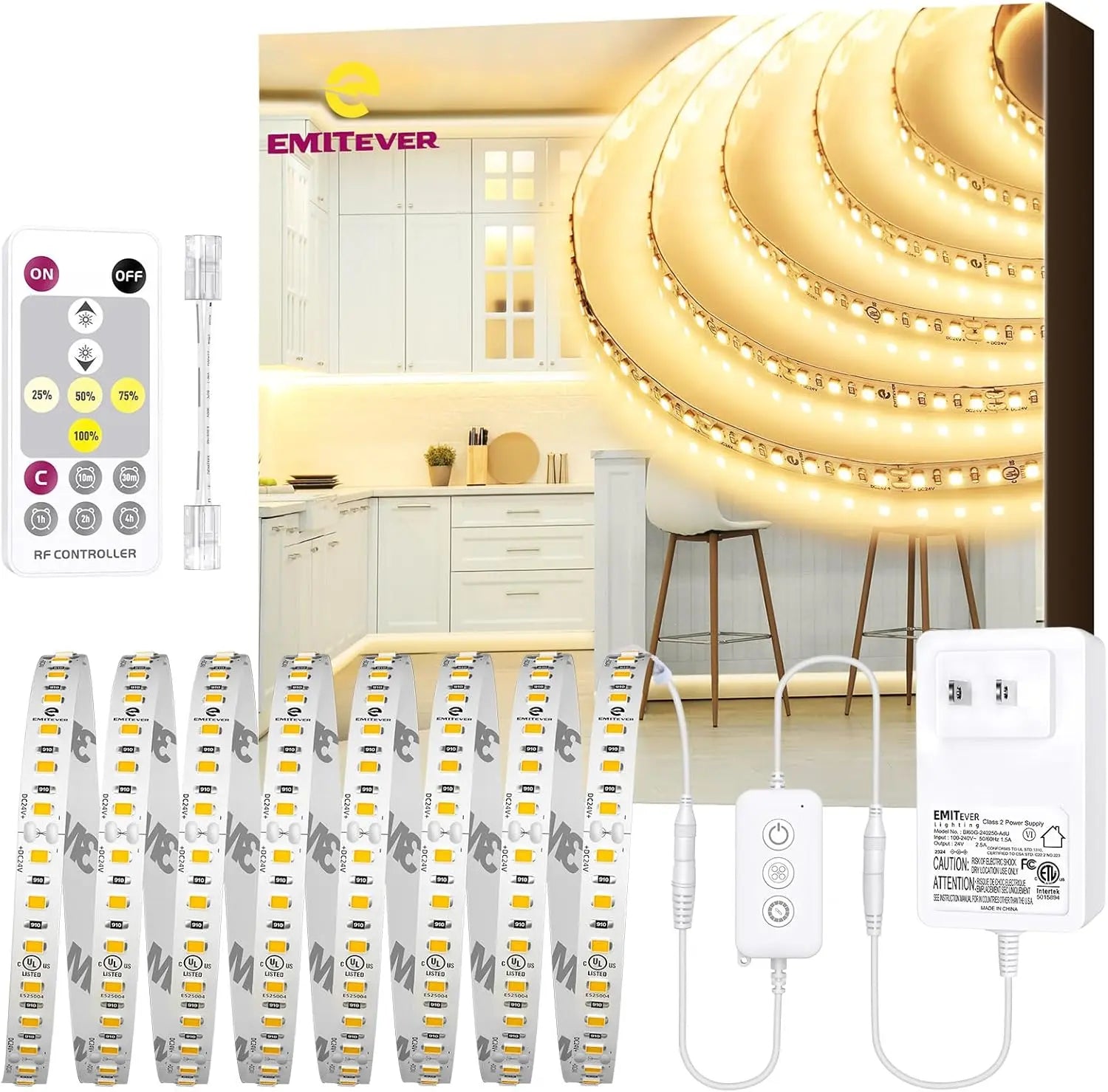

Looking for RGB or Plug-and-Play Kits?
Complete kits with included power supplies, controllers, remotes, and accessories. Perfect for accent lighting, room décor, and quick installations.
- Choosing a selection results in a full page refresh.
LED power systems require proper load calculations and compatible controls. For best results, professional installation is recommended.
!
