Input Voltage AC 100-277V 50/60Hz
Output Voltage DC 24V
Maximum Output 30W
Efficiency Up to 86%
Power Factor >0.9
Converts 100-277V AC to 24V DC
Specification Met UL, FCC, cUL, Class 2, Class P, Type HL, FCC compliant
Color White
Style Slim 30W
IP Rating IP30 (suitable for dry and damp locations)
Included Components 30W Dimmable Driver
Mounting Type Surface Mount
Power Source Type Corded Electric
SKU: PWR-F24V-030-30-U-N

30W Traic Dimmable LED Driver, Power Supply 100-277V AC to 24V DC, 0-100% Dimming Transformer, IP30

Style: Slim 30W

Price
$36.54
Taxes and shipping calculated at checkout
30W Traic Dimmable LED Driver, Power Supply 100-277V AC to 24V DC, 0-100% Dimming Transformer, IP30 Emitever
Style: Slim 30W

Stock Notification

Get notified when this product is available again

30W Traic Dimmable LED Driver, Power Supply 100-277V AC to 24V DC, 0-100% Dimming Transformer, IP30

SKU
Style
Price
PWR-F24V-030-30-U-N Slim 30W
$36.54
Sold out
Compare product options
Out of stock

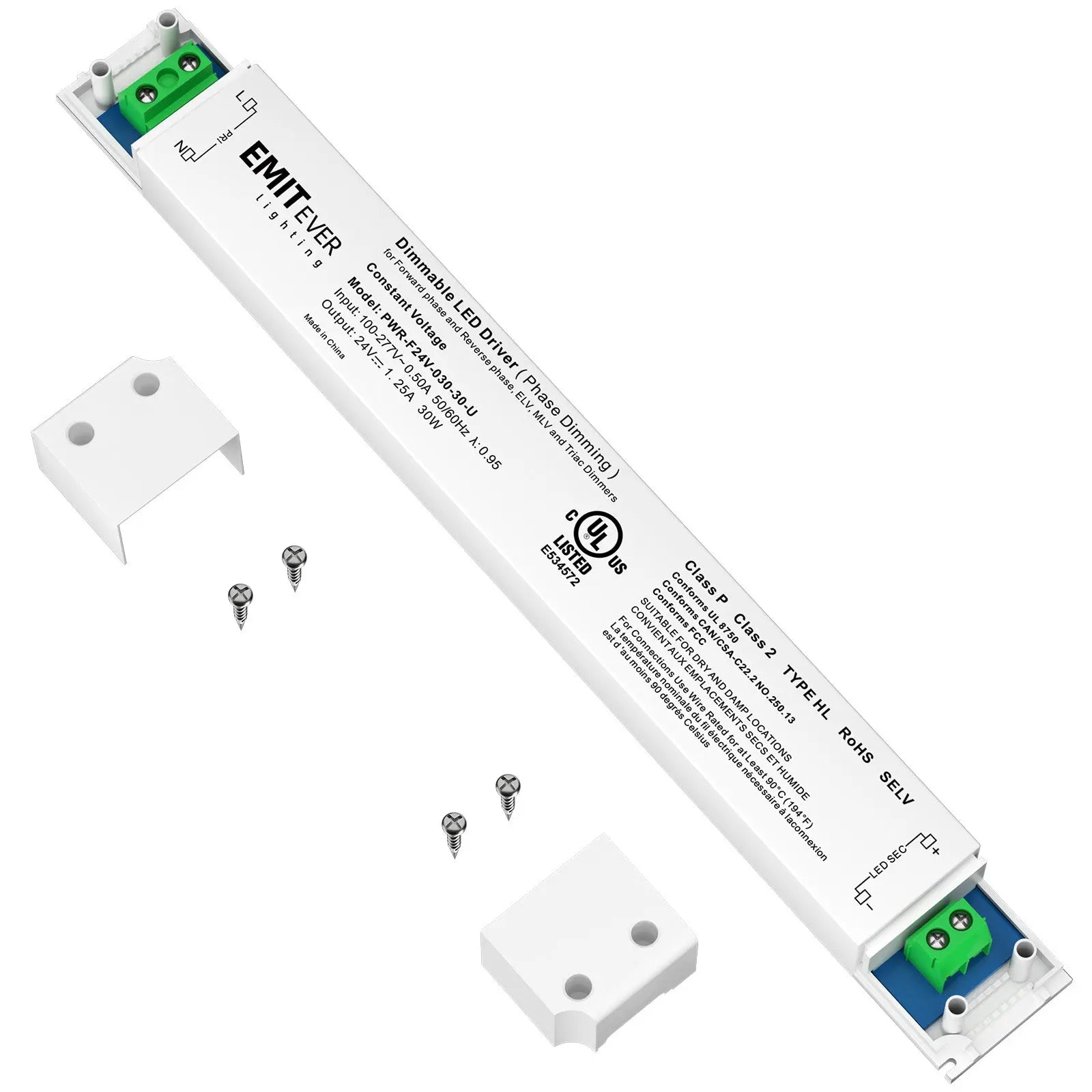

The Emitever 30W Triac Dimmable Driver is designed to provide reliable and efficient power to LED lighting systems.

  • Converts 100-277V AC to 24V DC,
  • Maximum power output of 30W.
  • Designed for 24V LED lighting, it features a 0-100% dimming function for adjustable brightness.
  • Ideal for residential and commercial settings, a versatile and reliable solution for any LED lighting system requiring dimming capabilities.

Features over-current protection and short-circuit protection for a safe and protected installation from electrical surges or other problems.

30W Traic Dimmable LED Driver, Power Supply 100-277V AC to 24V DC, 0-100% Dimming Transformer, IP30 Emitever

30W Traic Dimmable LED Driver, Power Supply 100-277V AC to 24V DC, 0-100% Dimming Transformer, IP30

Style: Slim 30W

$36.54

Converts your project's 100-277V AC line voltage to 24V DC .

Compatible with Forward phase, Reverse Phase, Magnetic low voltage, and Triac Dimmers.

Description

The Emitever 30W Triac Dimmable Driver is designed to provide reliable and efficient power to LED lighting systems. It converts 100-277V AC to 24V DC, with a maximum power output of 60W.

  • Protection: Features built-in short circuit, overload, and over temperature protection, with a durable case for dry and damp locations.
  • Application: For use in both residential and commercial settings.
  • Dimmable: Triac dimming technology to support both leading-edge and trailing-edge dimmers.
  • IP30: Dry or damp location use IP30

This driver offers a versatile and reliable solution for any LED lighting system that needs dimming capabilities, designed to work with a wide variety of dimmer switches and existing wiring systems.

Product Features

Stable output: 0-100% smooth and full range flicker-free dimming.

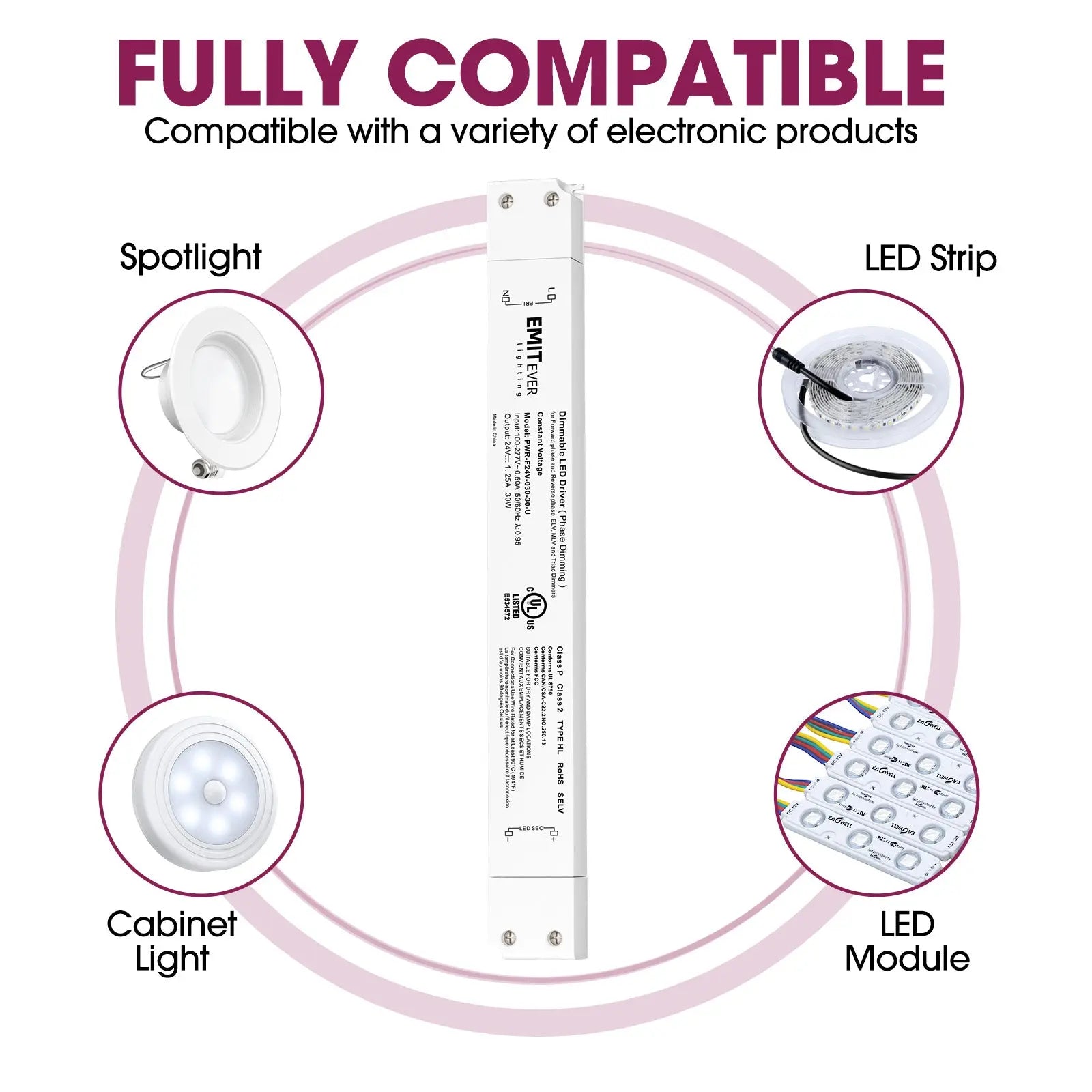

24V: Works for DC24 LED Lighting such as LED strips, modules, light bars, puck, under cabinet and other LED accent lights.

Power Efficient: With a power factor greater than 0.9 and an efficiency rating of up to 86%, this Dimmable Driver's power is highly efficient.

Easy to install: Simply connect the Red and Black wires to the LED device. Ensure the connection is done correctly.

IP30: Dry or damp location use IP30

Dimmer Switches: Our Dimmable Driver is designed to be smooth dimmable and compatible with a wide range of dimmer switches.

Compatible Dimmable: Compatible with Forward phase, Reverse Phase, Magnetic low voltage, and Triac Dimmers.

Safety Features

Always verify connections before powering up.

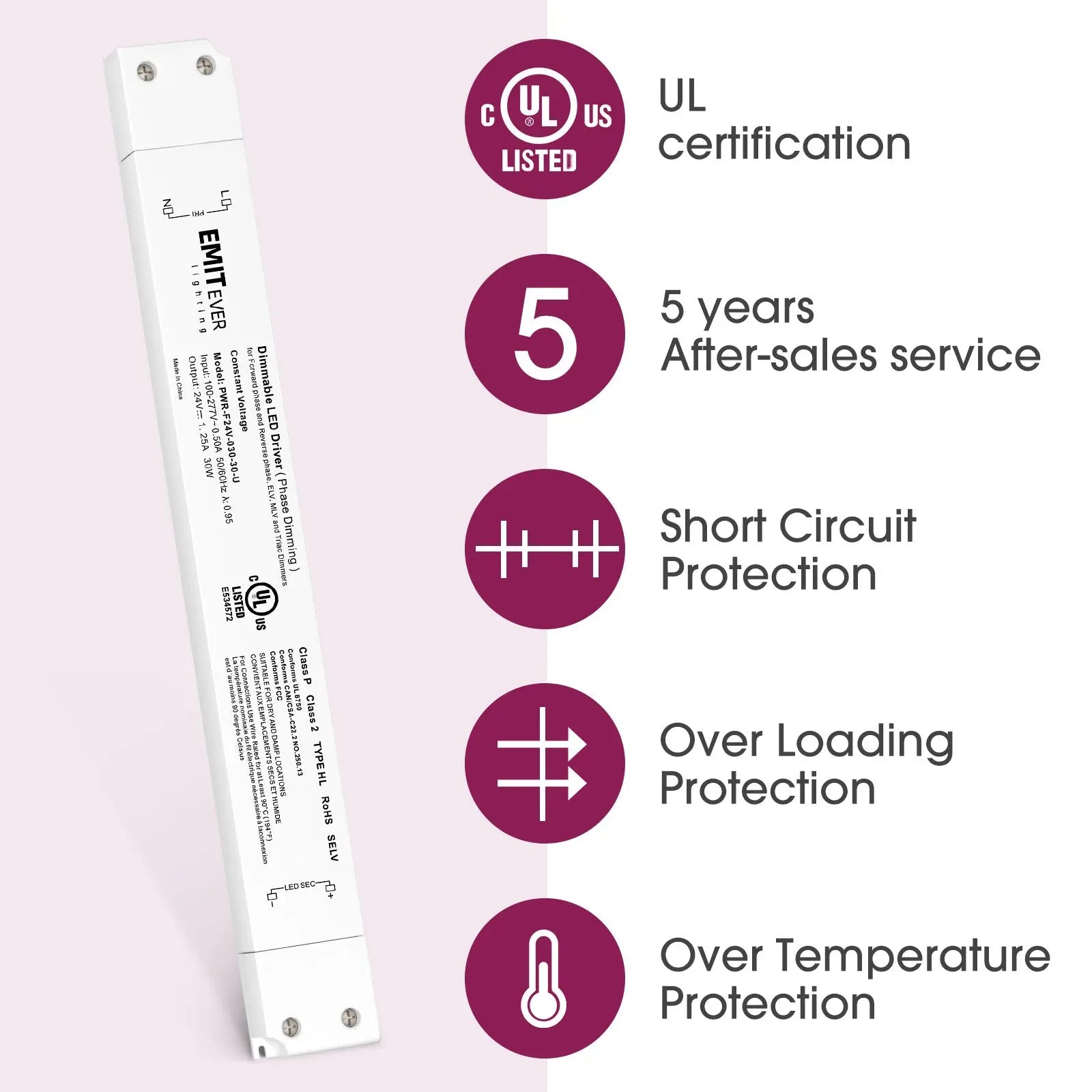

Built-in protection includes:

  • Short Circuit
  • Over Loading
  • Over Current
  • Over Temperature

Short Circuit Protection: Automatically shuts down to prevent damage and recovers after resolving the issue.

Overload Protection: Prevents the driver from overloading, ensuring safe and stable operation.

Over Temperature Protection: Shuts down the output voltage at 100℃±10℃ to prevent overheating and automatically recovers after cooling down.

Full Protection Plastic Case: Ensures durability and safety for dry and damp locations.

Certifications
  • cUL us Listed
  • Class 2
  • Class P
  • Type HL
  • RoHS
  • SELV
  • FCC Compliant
  • 5-Year Warranty
