Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
Click to open expanded view
Input Voltage AC 100V-277V 50/60Hz
Output Voltage DC 24V
Maximum Output Choose between 60W, 96W, 150W, and 300W options.
Minimum Frequency 50 Hz
IP Rating IP67 (Waterproof suitable for harsh conditions, wet and damp locations)
Material High Quality Aluminum
Mounting Type Surface Mount
Color Black
Specification Met cUL us, Class 2, Class P, Type HL, and FCC
SKU: PWR-H24V-096-67-U-D-J

Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W

Style: 96W Triac Dimmable Driver
Price
$87.99
Taxes and shipping calculated at checkout

Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W

SKU
Style
Price
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
PWR-H24V-096-67-U-D-J 96W Triac Dimmable Driver
$87.99
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
PWR-H24V-300-67-U-D-J 300W Triac Dimmable Driver
$167.99
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
PWR-H24V-060-67-U-D-J 60W Triac Dimmable Driver
$67.99
Waterproof Dimmable LED Driver, IP67, 100-277V AC to 24V DC, Class 2, UL Listed, 60W, 96W, 150W, 300W
PWR-H24V-150-67-U-D-J 150W Triac Dimmable Driver
$107.99
Compare product options
120 in stock and ready for shipping

The Emitever Dimmable LED Driver is designed to provide reliable and efficient power to LED lighting systems.

Its waterproof IP67 rating makes it ideal for both indoor and outdoor use, ensuring versatility and durability in various environments.

  • Converts: 100V-277V to DC 24V power.
  • Available max output options: 60W, 96W, 150W and 300W
  • Smooth Dimming: Seamless brightness control using a standard wall dimmer switch ensures smooth, flicker-free dimming from 0-100%
  • Strong Quality: Encased with a tough aluminum housing and an IP rating of IP67.
  • Waterproof: Suitable for harsh conditions, wet, dry and damp locations.

Features over-current protection and short-circuit protection for a safe and protected installation from electrical surges or other problems.

Share this product

Converts your project's 100V-277V AC line voltage to 24V DC .

Compatible with forward phase, reverse phase, Triac, MLV, and ELV dimmers.

Description

The Emitever Waterproof Dimmable LED Driver is capable of converting your project's 100V-277V AC line voltage to 24V DC.

Output Constant Voltage: Delivers stable and consistent voltage for reliable LED performance providing reliable and efficient power to your LED lighting systems.

Ideal for a wide range of LED lighting application, suitable for both residential and commercial settings, including indoor and outdoor use applications.

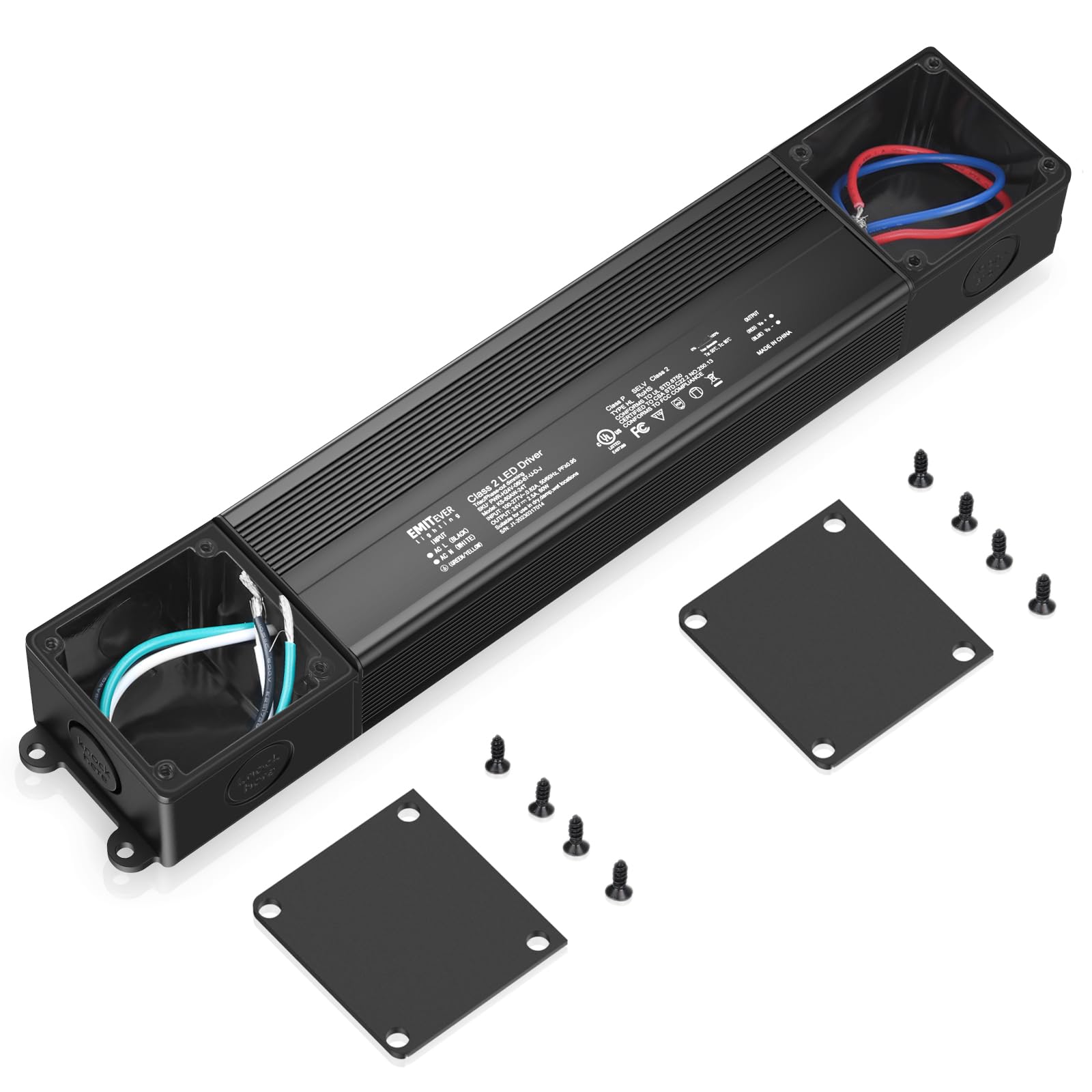

Encased in a tough aluminum enclosure that includes knockouts for easy installation in any low voltage application.

Incredibly robust and includes a 5-Year warranty. Within 30 days since the order date, you can get a full refund without any prerequisite after returning an Emitever product undamaged.

Product Features

Triac Dimmer Compatibility: Works with forward phase, reverse phase, Triac, MLV, and ELV dimmers.

Stable Output: Ensures stable output for DC24V LED lighting, including strips, modules, light bars, puck lights, under cabinet lights and more.

This versatility makes it ideal for high-performance dimming applications.

Premium Commercial Construction: Encased in a tough aluminum enclosure with knockouts for easy installation in any low voltage application.

Built-in Protection: Includes standard protections such as short-circuit, overload, and over-temperature protection, ensuring safe and reliable operation.

Mounting Features: Includes mounting feet at both ends for secure installation on flat surfaces.

Free Air Convection Cooling: The driver's aluminum housing is designed for efficient cooling, ensuring the driver remains cool and functional during operation.

Safety Features

Always verify connections before powering up.

Ensure the red and black wires are correctly connected to the dimmable LED device.

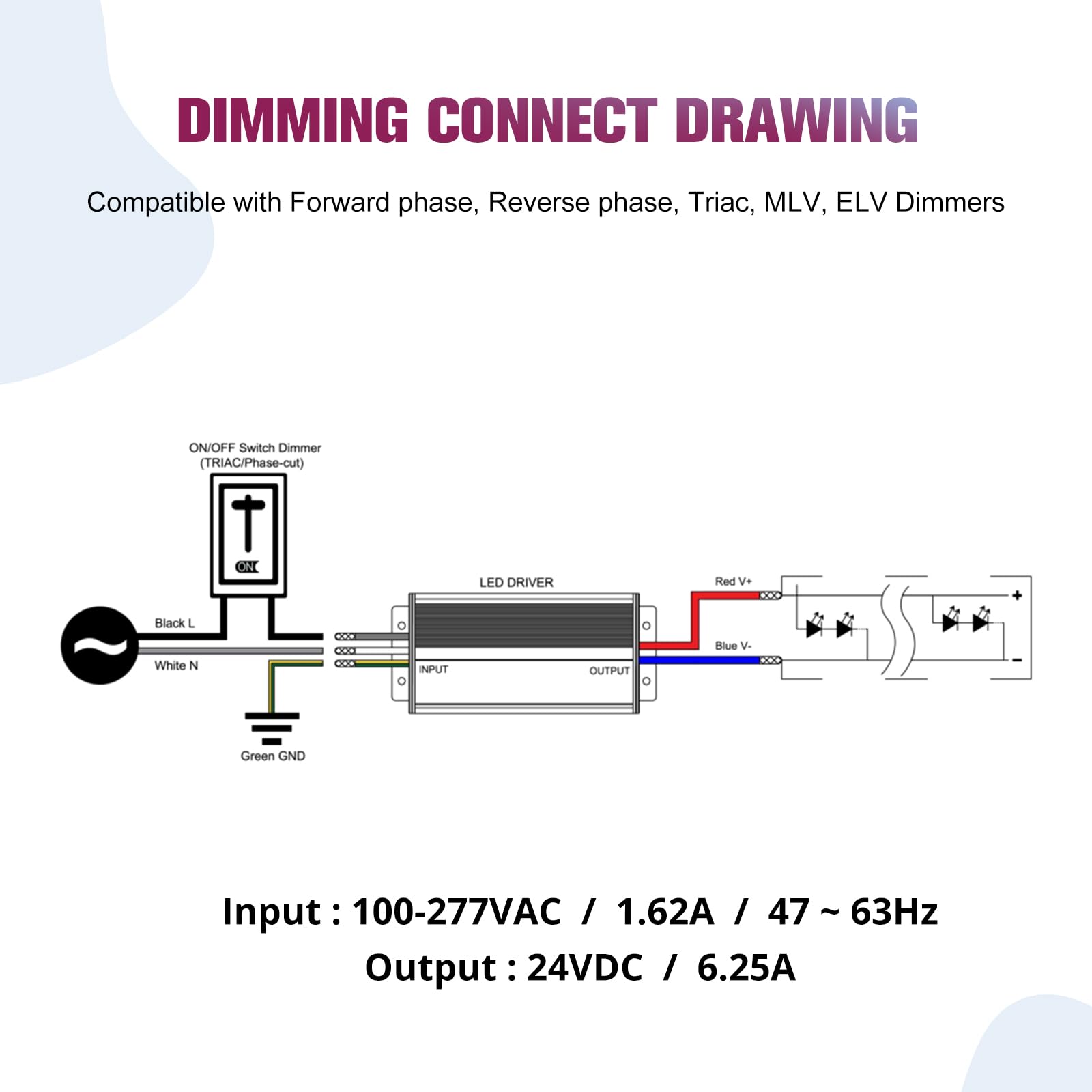

Refer to the specific connection method in the provided image for accurate installation.

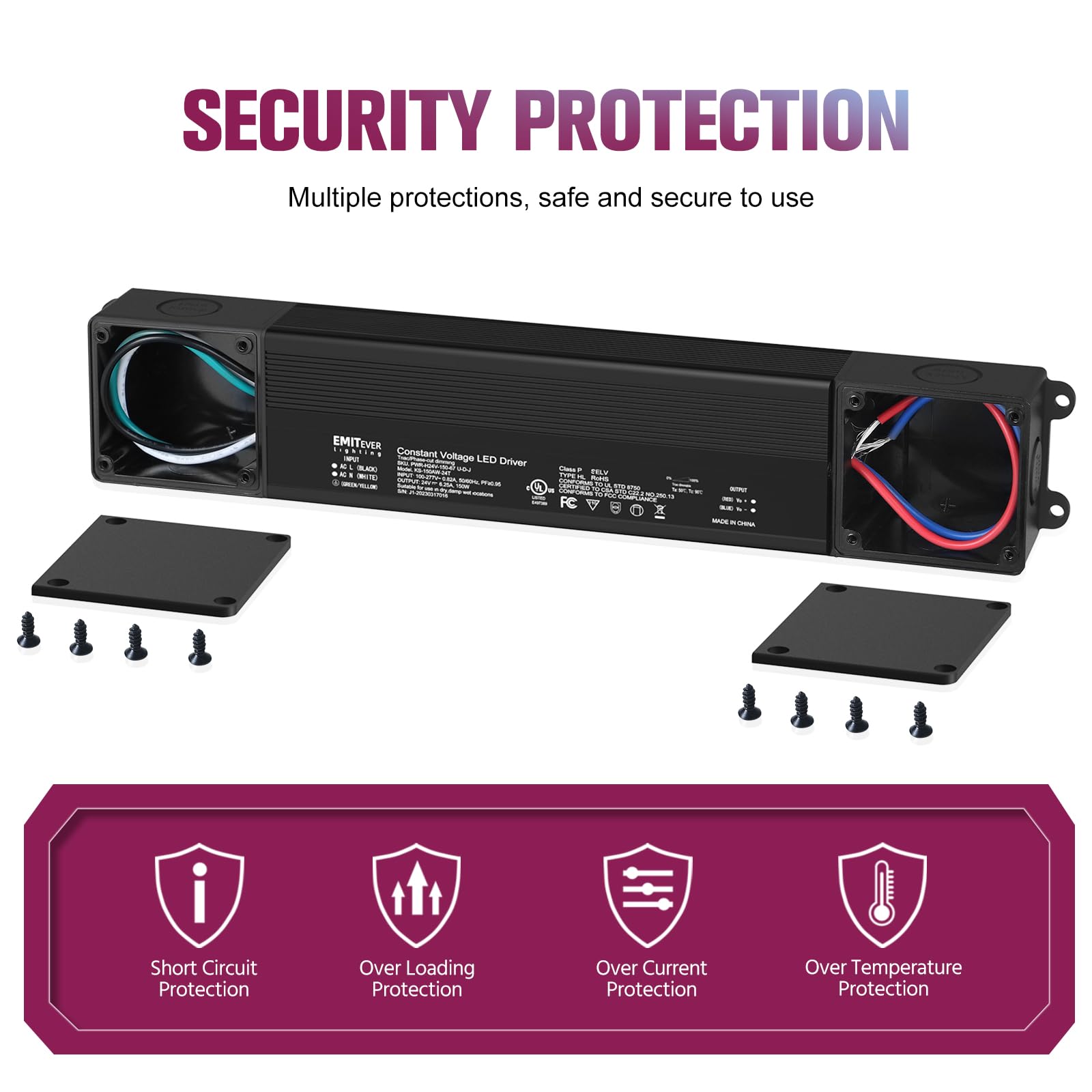

Input Surge Protection: Guards against voltage spikes from the power source

Over Current Protection: Prevents excessive current from damaging the driver

Output Over Voltage Protection: Ensures output voltage remains within safe limits

Short Circuit Protection: Automatically shuts down to prevent damage and recovers after resolving the issue

Over Temperature Protection: Shuts down the output voltage at high temperatures to prevent overheating and automatically recovers after cooling down

Energy Efficient: Converts a large portion of the input power into usable output power, minimizing waste and reducing energy costs.

Waterproof IP67: Suitable for dry and damp locations, providing reliable performance in both indoor and outdoor settings

Certifications
  • cUL us Listed
  • Class 2
  • Class P
  • Type HL
  • FCC compliant
  • IP67 Rated
  • Warranty: 5 Years
